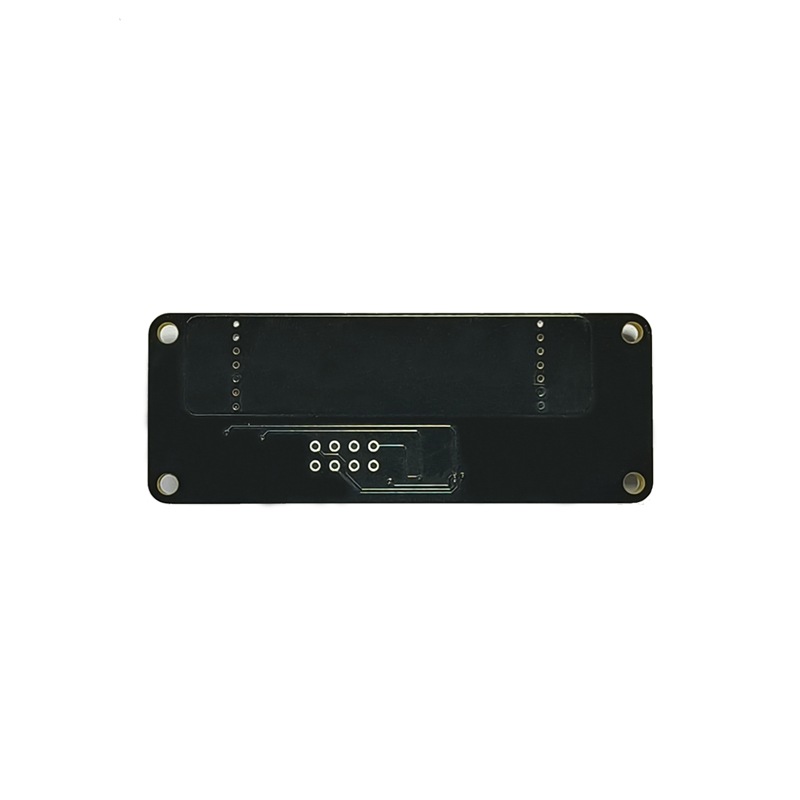

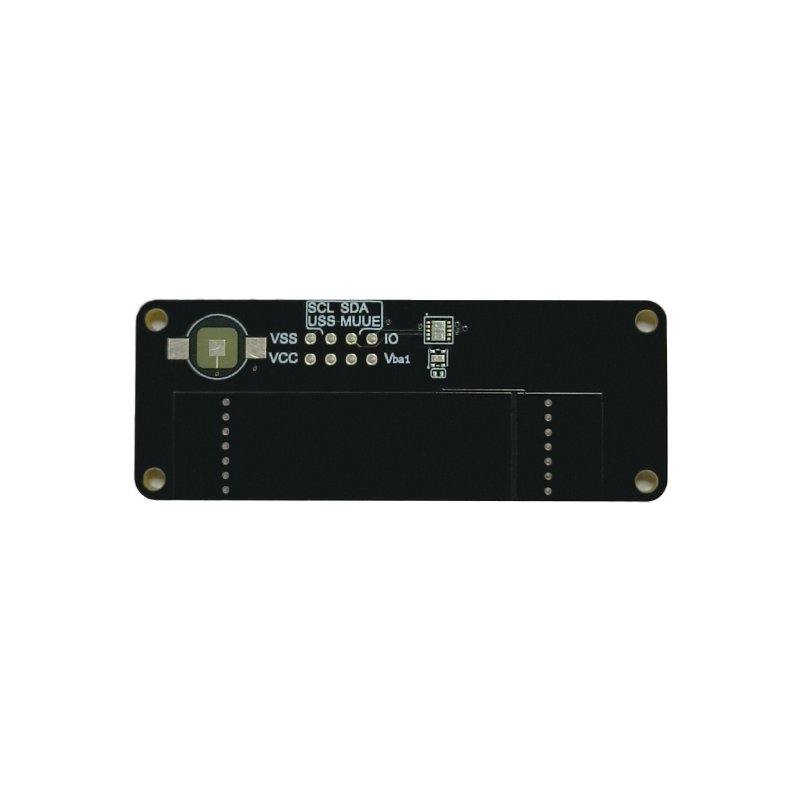

Custom NFC RFID dual band tag PCB Waterproof and heat-resistant NFC tag FM13DT160 chip 66*25mm
| Categories | RFID NFC Dual Frequency Tag |
|---|---|
| Brand | DC-NFC Tag Manufacturer |
| Model | RFID：ISO18000-6C（EPC C1G2）/HF:ISO/IEC 14443-A |
| category | RFID：ISO18000-6C（EPC C1G2）/HF:ISO/IEC 14443-A |
| support | DC-NFC tag manufacturer |

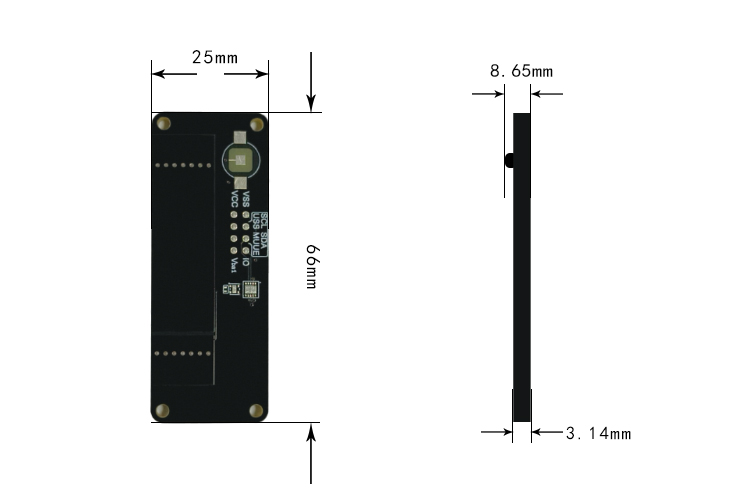

| size | 66*25mm |
| standard | ISO/IEC18000-6C/14443-A |
| chip | FM13DT160 |
| frequency | 860-960MHZ/13.56MHz |
| Type | UHF |
| FOB port | Shenzhen |
| Terms of Payment | T/T |
| Update Time | Sep 10,2026 |
|
High frequency interface
|
|||
|
Communication protocol:
|
ISO/IEC 14443-A or ISO/IEC 15693
|
||
|
Working frequency:
|
13.56MHz
|
||
|
Resonant capacitance:
|
23.5pF
|
||
|
Temperature measurement and read-write operation distance:
|
5cm (depending on the size of the reader and antenna)
|
||
|
ISO15693 interface communication speed:
|
26K bps
|
||
|
ISO14443 interface communication speed:
|
106K bps
|
||
|
Uhf interface Communication protocol: EPC Global C1G2 V1.2.0 Working frequency: 840~960Mhz Downlink data rate (reader to label) : 40kbits/s to 160kbits/s Uplink data rate (label to reader) : 5kbits/s to 640kbits/s Active temperature measurement, reading and writing sensitivity: -25dBm Contact interface Communication protocol: I2C VCC working voltage range: 2.7V~3.6V Maximum communication speed: 100kbps |
|||
|
Temperature measurement function Wide operating voltage range of battery: 1.1V~1.65V Accurate temperature measurement range: -35 ℃~50 ℃ Temperature measurement accuracy: ± 0.5 ℃ Temperature measurement interval can be configured: minimum 1 second, maximum 65535 seconds Configurable temperature measurement startup delay time: minimum 1 minute, maximum 65535 minutes. RTC clock accuracy: ± 2% @ full temperature range Low standby power consumption: 60nA@PD pattern; 600nA@Standby Mode (RTC working) Support multiple temperature data recording modes, including all data mode and over limit mode, etc Support automatic adjustment of temperature measurement time interval when overheating alarm occurs |
|||
-
